How to Plan a Star Ceiling Layout Before Installation

A clear star ceiling layout begins with a measured boundary. Decide where the panel zone will start and end, mark every fixed ceiling feature, and then estimate the standard panel positions needed to meet or exceed the zone dimensions. The estimate is a planning aid, not proof that panels physically fit the boundary.

The goal of this guide is a room drawing that can be checked before installation. It focuses on the zone, borders, obstructions, sightlines, connection questions, and the information support needs to review an unusual plan.

1. Define the panel zone

Start by deciding which part of the ceiling will contain panels. It may be the full ceiling or a defined feature above a bed, seating area, desk, or screen.

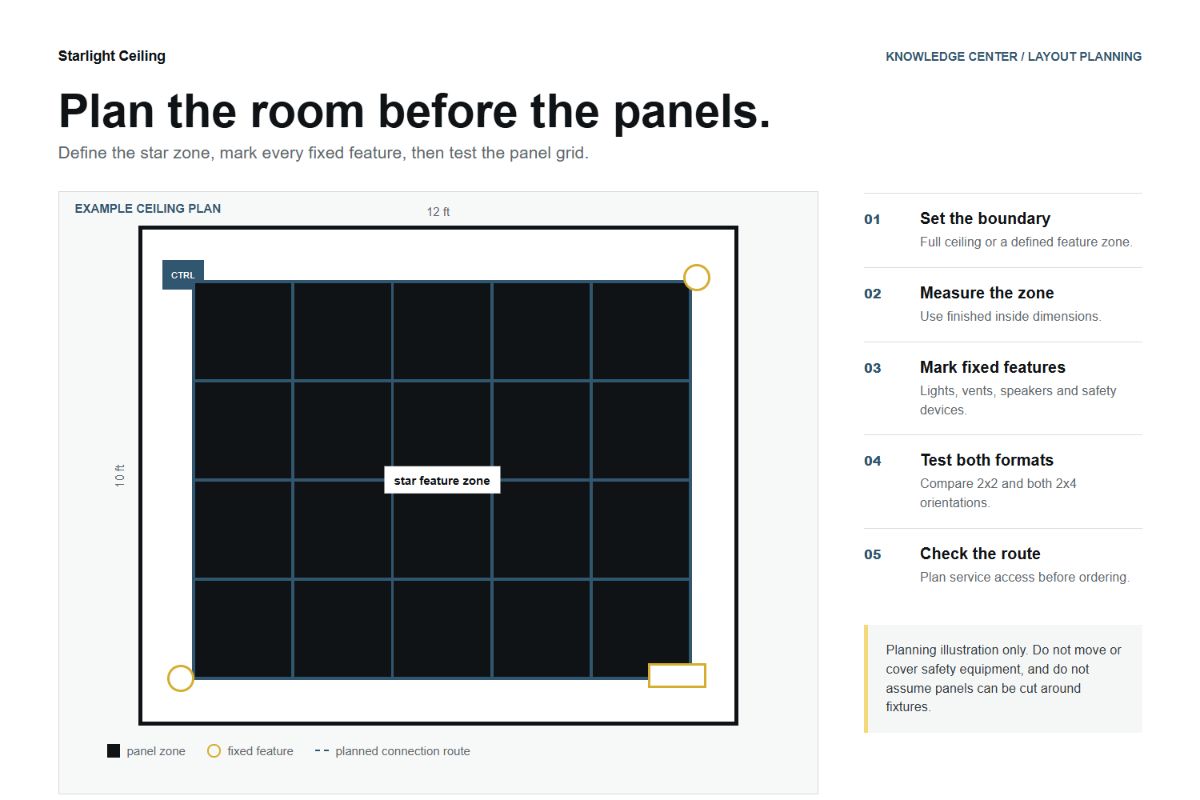

Draw the full room outline first. Then add the proposed panel-zone boundary inside it. This keeps the surrounding border visible and makes it easier to compare a room-centered layout with one centered on the way the room is used.

Keep the first boundary simple. A clean rectangle is easier to measure and review. For an irregular shape, dividing the zone into non-overlapping rectangles can produce a conservative starting estimate. It does not confirm that differently oriented grids join cleanly or fit an irregular edge, so preserve the divisions on the drawing and ask support to review shared boundaries.

2. Measure length and width

Measure the finished length and width of the proposed panel zone. Use the same unit for both dimensions.

Record:

• Full room length and width
• Panel-zone length and width
• Distance from the panel-zone boundary to each wall
• Location of every fixed ceiling feature

Do not rely on a rough room listing or floor-plan label. Use the actual finished dimensions of the proposed panel zone and keep the full room outline on the same drawing.

3. Estimate a starting grid

After measuring the zone, use the separate 2x2 vs 2x4 Star Ceiling Panels guide to estimate the standard panel positions needed for each format. That comparison owns the formulas, direction test, worked examples, and current kit-count mapping.

Treat the result as a conservative starting count. When a room dimension is not an exact panel multiple, the nominal grid can extend beyond the measured boundary. That does not establish physical fit or permission to cut, trim, or otherwise modify a panel. Revise the zone or ask support to review it.

For a zone divided into rectangles, keep every division visible on the drawing. Independently estimated sections do not prove that their grid directions join cleanly at a shared edge.

4. Mark every fixed ceiling feature

Add every item that may interrupt the proposed grid:

• Lights
• Vents and grilles
• Speakers
• Beams and soffits
• Access panels
• Projectors and their beam path
• Detectors, sprinklers, and other required equipment

Measure each feature from two fixed walls so its position is clear. Do not cover, move, or redesign required equipment based on this article. Follow the equipment instructions and applicable requirements.

If a feature intersects a panel position, revise the boundary or ask support to review the plan. Do not assume a panel can be cut, trimmed, or changed to fit.

5. Compare the grid, not just the count

Draw the estimated number of whole panels inside the boundary. For the 2x4 format, draw the lower-count direction first, then check the other direction if the first creates an awkward border or conflict.

Review four things:

1. Rows and columns: Does the drawing match the geometric calculation?
2. Borders: Are the remaining margins intentional?
3. Fixed features: Does any panel position overlap a marked feature?
4. Room focus: Is the zone aligned with the bed, seating, screen, or other intended focal point?

A lower count is useful only when the grid also makes sense in the room. If neither panel format produces a clear plan, send the drawing to support instead of forcing the boundary.

If the format choice is still unclear, return to the 2x2 vs 2x4 comparison before selecting a kit.

6. Match the count to a current room kit

Current room-kit counts are 5, 10, 15, 20, 25, and 30 panels. Choose the smallest sold configuration that is equal to or higher than the estimate; do not round down. Estimates above 30 panels require a project review rather than an assumed configuration.

The selected format still matters because the same count represents different nominal coverage for 2x2 and 2x4 panels. Read How to Choose the Right Star Ceiling Kit and review the current Small, Medium, and Large Room Kit options before ordering.

7. Add the system review points

The layout should include a proposed system connection area and access to the intended power location. Use the official Installation Guide to understand the published connection sequence.

Keep this part conditional until the room is reviewed. Do not assume a cable extension, hidden location, panel modification, or electrical method that is not confirmed for the project. If the connection path is unclear, add it to the questions sent to support.

When the layout is approved and the product is on hand, use the separate How to Install a Star Ceiling article as an orientation, then follow the official instructions supplied for the product and project.

8. Prepare a useful support package

For an irregular ceiling, an estimate above 30 panels, or a grid interrupted by fixed features, send support a concise planning package:

• Full room dimensions
• Exact panel-zone dimensions
• Ceiling type
• Clear photos of the full ceiling
• A marked drawing with fixed features
• The calculated 2x2 count
• Both 2x4 direction counts
• The current kit configuration being considered
• Questions about any unclear connection or boundary condition

This gives the support team the room context behind the number.

Common layout mistakes

Treating area as a finished layout

Area alone does not show borders, rows, columns, or fixture conflicts. Use the format comparison to estimate panel positions, then draw the grid against the measured room.

Drawing fixtures after the grid

Mark fixed features first. They are part of the layout, not a detail to resolve after the panel count is chosen.

Treating the estimate as approval

The calculation estimates whole-panel geometry. It does not approve panel modification, mounting conditions, electrical work, or an unusual ceiling.

Leaving connection questions until installation

Add the proposed connection area, power location, and unresolved routing questions to the drawing before ordering.

Frequently asked questions

Should I measure the whole ceiling?

Measure the exact zone that will contain panels. If the plan is a centered feature rather than full coverage, calculate the feature-zone dimensions.

How do I calculate an irregular or L-shaped zone?

Dividing it into non-overlapping rectangles can produce a conservative starting estimate. Preserve the same divisions on the drawing and ask support to review shared edges; independently calculated sections do not prove the grids join cleanly.

What if the nominal grid crosses the zone boundary?

Revise the proposed zone or ask support to review the drawing. A rounded-up planning estimate is not permission to cut or modify a panel.

What if the estimate is more than 30 panels?

Contact support for a project review. Do not assume how a larger system should be divided.

Can I plan around a light, vent, or beam?

Mark the feature on the measured drawing and ask support to review any conflict. Do not assume a panel can be modified.

From dimensions to a clear plan

Define the zone, mark the borders and fixed features, estimate a starting grid, and check the drawing against the real ceiling. The finished plan should make every unresolved boundary, obstruction, and connection question visible.

Compare 2x2 and 2x4 panels, review the official Installation Guide, or send the layout to support.
