Star Ceilings with In-Ceiling Speakers: A Planning Guide

Can a star ceiling share a room with in-ceiling speakers? Yes, provided the speaker positions, support, clearances, and access are planned alongside the panel layout. A useful starting point is to keep speaker grilles exposed in a separate plain ceiling area and arrange whole star panels around the agreed audio layout. Do not assume that a decorative acoustic panel can hide, support, or be cut for a speaker.

Both systems compete for the same overhead space, but they do different jobs. The star field creates atmosphere; the speakers need the locations and mounting conditions specified for your audio system. Coordinating them on one drawing before ordering is much easier than discovering that a speaker opening lands on a panel seam.

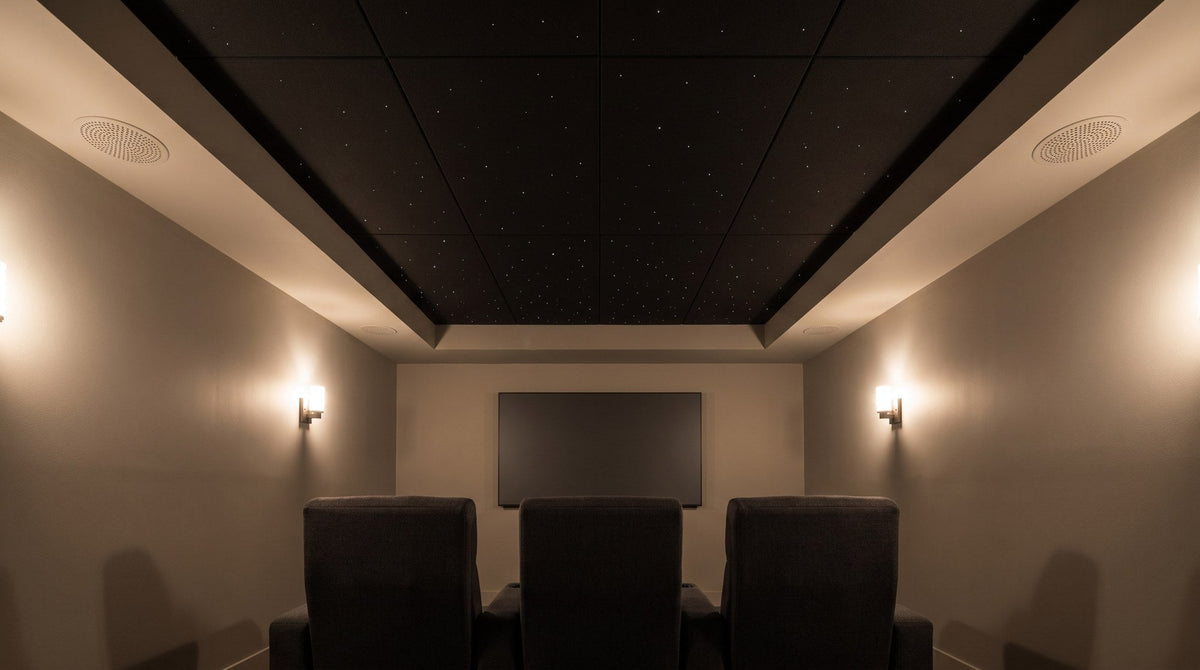

The images in this guide are AI-generated room concepts. They show ways to separate ceiling features, not approved speaker positions or examples of tested audio performance.

Start with the listening position and speaker plan

Mark your main seats and screen wall first. Then have your AV installer establish the overhead speaker locations for the chosen configuration and speaker models. Use the appropriate Dolby Atmos speaker setup guidance rather than moving speakers simply to make a decorative rectangle symmetrical.

Once those locations are agreed, add the intended star-panel field to the same plan. Include the full speaker grille outline and the space the manufacturer requires behind it, not just a dot marking the center. A grille that looks clear from below can still have a housing or mounting clamp that conflicts with the proposed ceiling assembly.

For a room that already has speakers, record their model numbers and current positions before designing the star field. If the existing layout is staying, design around it. If it needs to change, resolve that with the audio installer before the panel order is finalized.

Keep the speaker opening separate from the star field

A plain strip or border is one way to reserve space for exposed speaker grilles while keeping the star panels in whole rectangles. It can also make the different elements easier to understand visually. The width of that strip is a result of the speaker and mounting requirements; there is no universal border dimension in this guide.

If a speaker position falls inside the desired star area, there are several questions to resolve. Could the star field become smaller? Could the panel orientation change? Would two separately bounded panel areas fit the room better? Ask Starlight Ceiling and your AV installer to review these options together. A proposed cutout or custom mounting detail needs confirmation for the specific products before you build it.

Does “acoustic panel” mean you can hide a speaker behind it?

No. Sound absorption, sound transmission through a covering, and structural support are separate questions. An acoustic product description does not by itself confirm that placing the panel in front of a loudspeaker will preserve its output, or that the panel can carry the speaker's weight.

Keep the grille and sound path unobstructed unless both suppliers have approved a specific arrangement. Ask for the speaker's installation requirements and any relevant evidence for the exact panel-and-speaker combination. Do not substitute a general acoustic rating for that compatibility check. Our guide to sound absorption versus soundproofing explains another common distinction when planning a theater ceiling.

Overhead speakers and upward-firing speakers need different checks

Dolby distinguishes speakers installed overhead from upward-firing models that use a ceiling reflection. That difference matters before you add a new finish above the listening area. Dolby's home theater installation guidelines discuss ceiling conditions for upward-firing systems.

If you use upward-firing speakers or a soundbar with upward-firing drivers, tell the design team before choosing panel coverage. Have your AV installer assess the proposed surface and geometry in the sound path. This guide does not establish StarBright compatibility with a particular reflected-height system or promise unchanged audio performance.

Plan mounting and connections before closing the ceiling

StarBright panels are available in 2 × 2 ft and 2 × 4 ft nominal formats. Try their whole-panel footprints on the coordinated drawing, then confirm actual fit and mounting details. The current installation guide calls for planning the layout, keeping connections accessible, and testing the panels before completing the finish.

Identify the controller location, panel connection routes, speaker connections, and any access panels while the space is still visible. Keep a record of the final arrangement. Your installer should determine the appropriate cable routing and support for each system; the star-ceiling controller is not an audio receiver, and the two systems should not be treated as interchangeable equipment.

Check each system before the final finish

1. Compare the installed locations with the drawing. Confirm that speaker grilles, panel edges, and service openings have the intended clear space.
2. Test the star panels. Follow the installation guide and check the lighting response before inaccessible areas are closed.
3. Test the speakers. Use the receiver's documented channel checks and setup procedure, following the speaker manufacturer's instructions.
4. Listen from the main seats. Ask the installer to investigate unexpected rattles or other changes rather than concealing them with the ceiling finish.
5. Save the final plan. Keep model numbers, panel arrangement, and access locations together for future service.

Frequently asked questions

Can I cut a StarBright panel for an in-ceiling speaker?

Do not plan a cutout without confirmation from Starlight Ceiling for the exact panel and proposed opening. Keeping the speaker in a separate plain ceiling section is an option to explore first.

Should speaker placement follow the star-panel grid?

Establish the audio layout around the listening area first, then coordinate the panel field with it. Any proposed speaker relocation should be checked by the audio installer.

Can an acoustic star panel cover a speaker grille?

Do not assume so. Acoustic absorption does not establish suitability as a speaker covering. Keep the opening exposed unless the specific arrangement has been approved.

What should I send for a coordinated ceiling design?

Send room dimensions, ceiling height, seating and screen positions, speaker models and locations, and photos of the existing ceiling. Mark vents, lights, and any access points too.
